How to Debug Notification Service Extension Ios

The fastest way to debug how to debug notification service extension ios is to verify that the push payload includes mutable-content: 1, attach Xcode to the extension process on a real iPhone, and inspect the extension’s logs in Xcode or Console. If the extension is not firing, the cause is usually the payload, signing or entitlements, notification delivery conditions, or a timeout inside the extension.

What a Notification Service Extension does

A Notification Service Extension is an iOS extension that gets a chance to modify a remote notification before it is displayed. It is commonly used to add or download attachments, decrypt content, or change the notification text and payload fields.

On iOS, the extension is implemented with UNNotificationServiceExtension. It runs separately from your main app, so debugging it is different from debugging app code. Breakpoints in the main app will not help if the issue happens inside the extension process.

The most common reasons the extension does not fire

If the service extension never runs, start with the basics. In most cases, the problem is one of these:

• The push payload does not include mutable-content: 1.
• The notification is not a remote push notification.
• The extension target is not configured correctly in Xcode.
• Signing, entitlements, or App Group access are mismatched.
• The notification arrives too late for the extension to finish processing.
• You are testing on the simulator instead of a physical device.
• The extension crashes before it can log anything useful.

Check the APNs payload first

The payload is the first thing to verify because the extension will not run unless iOS knows it should be able to modify the notification. The key field is mutable-content inside the aps dictionary.

Minimal example of a payload that can trigger a service extension

{
  "aps": {
    "alert": {
      "title": "New message",
      "body": "Open the app to read it"
    },
    "mutable-content": 1
  },
  "message_id": "12345"
}

Make sure of the following:

• mutable-content is inside aps, not outside it.
• The value is 1, not a string like "1".
• The notification is sent as a remote push through APNs or your push provider.
• The payload is valid JSON.

If you are also using a notification content extension, remember that the service extension and content extension are different components. The service extension modifies the payload first, then the content extension can present a custom UI.

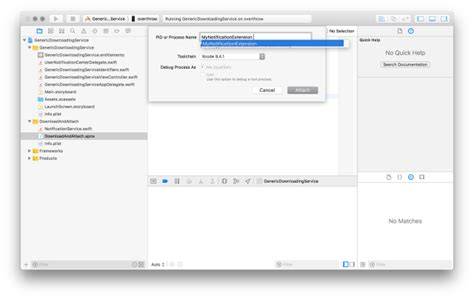

How to debug it in Xcode

To debug the extension in Xcode, you need to attach to the extension process, not just run the main app. The exact process name can vary, but it will usually be the extension’s bundle name or a process associated with your service extension target.

1. Build and install the app on a physical iPhone connected to Xcode.
2. Send a push notification that includes mutable-content: 1.
3. When the extension launches, open Xcode’s debug menu and attach to the running process if needed.
4. Set breakpoints inside the service extension code, especially in didReceive(_:withContentHandler:).
5. Step through the code and confirm that your logic executes before the timeout expires.

If breakpoints are not hit, it usually means the extension is not being launched at all, or it crashes before reaching the code path you expect. In that case, move to payload, signing, and log inspection.

Verify entitlements and signing

Misconfigured signing is a frequent cause of extension issues. The app target and the notification service extension target must be correctly signed and provisioned.

What to verify

• The extension has its own target and bundle identifier.
• The team and provisioning profile are valid for both targets.
• Any required App Groups capability is enabled in both the app and the extension if they share data.
• The App Group identifier matches exactly in both places.
• There are no stale or conflicting entitlements after a build setting change.

If your extension writes files, caches data, or reads shared content, App Group configuration matters. A mismatch can cause the extension to fail in ways that look like a notification bug but are really an entitlement problem.

Read extension logs

Logs are often the fastest way to understand what is going wrong. Since the extension runs in its own process, you may not see useful output in the main app console unless you are watching the device logs.

Where to look

• Xcode debug console while the extension is attached
• Console app on macOS with the connected device selected
• Device logs collected during a test push

Add targeted log statements inside the extension, especially before and after network calls, payload parsing, and attachment handling. Keep the messages short and specific so you can tell exactly where the flow stops.

Useful checkpoints include:

• Extension launched
• Payload received
• Attachment download started
• Attachment download completed
• Modified content delivered
• Fallback content handler called

Test on a physical device

A Notification Service Extension should be tested on a real iPhone or iPad. Simulator testing is limited and can be misleading for push notification behavior. If you are trying to reproduce a production push issue, use the same kind of device and the same push path whenever possible.

A physical device also helps you verify behavior that depends on APNs delivery, device tokens, network access, and notification permissions. If the extension works on one device but not another, compare iOS version, notification settings, and signing configuration.

Why the simulator can be misleading

The simulator is useful for some UI work, but it is not a reliable way to validate the full push notification flow. A Notification Service Extension depends on real push delivery conditions, and those conditions are often different on the simulator.

Use the simulator only for quick app-side checks, not as the final proof that the extension works correctly.

Fix attachment and mutation failures

Two of the most common jobs for a Notification Service Extension are downloading an attachment and mutating the notification content. Both can fail even if the extension is launching correctly.

Attachment download problems

• The URL is unreachable from the device.
• The response is not a supported file type or format.
• The file is too large or takes too long to download.
• The extension times out before the download completes.
• The downloaded file is saved to a path that the notification cannot read.

Content mutation problems

• You modify the wrong object instead of UNMutableNotificationContent.
• You forget to call the content handler with the final content.
• You return early before applying changes.
• You rely on data that is not available inside the extension process.

If you are downloading attachments, keep the workflow simple. Confirm the URL works in Safari or a browser first, then confirm the extension can reach it, then confirm the downloaded file is usable as a notification attachment.

Watch for the time limit

Notification Service Extensions have a limited amount of time to finish work before iOS gives up and displays the original notification. If your code performs network work, parsing, or file operations, the extension may time out before it completes.

When this happens, iOS calls the expiration handler and continues with the original notification content. That can make it seem like your mutation code never worked, when in reality it simply did not finish in time.

A practical debugging workflow

Use this workflow when you need a reliable way to debug the extension:

1. Confirm the payload, especially mutable-content: 1 in the aps dictionary.
2. Verify the target configuration in Xcode, including bundle identifier, signing, and entitlements.
3. Install on a physical device and send a real remote push.
4. Attach the debugger to the extension process or launch with breakpoints already set.
5. Check the logs in Xcode and Console to see whether the extension launched, parsed the payload, and completed its work.
6. Test attachment and mutation logic separately so you know which part is failing.
7. Review timeout behavior if the extension starts but never finishes.

Debugging checklist

• The push is a remote APNs notification, not a local notification.
• mutable-content: 1 is present in the payload.
• The service extension target is included in the app project and correctly signed.
• The extension’s bundle identifier and provisioning profile are correct.
• App Groups match exactly if shared storage is used.
• You are testing on a physical device.
• The extension has logging statements in the code path you expect to run.
• The extension calls its content handler in every successful and failure path.
• Network requests complete fast enough to stay within the extension’s time limit.
• You have verified the issue is not caused by notification permissions or APNs delivery problems.

Common troubleshooting decisions

When to look beyond the extension

If the extension code looks correct but nothing runs, the issue may be outside the extension itself. Check the push provider, APNs configuration, device token handling, notification permissions, and whether the app is receiving the exact payload you expect.

For problems that affect the whole push pipeline, it helps to review your APNs setup and push notification architecture before blaming the extension alone.

Frequently Asked Questions About how to debug notification service extension ios

Why is my iOS Notification Service Extension not being called?

The most common reason is a missing or incorrect mutable-content: 1 key in the aps payload. Signing problems, target misconfiguration, or testing on the simulator can also prevent the extension from launching.

How do I debug a Notification Service Extension in Xcode?

Set breakpoints in the extension target, install the app on a physical device, send a push with mutable-content: 1, and attach Xcode to the extension process when it launches. Also watch the debug console for logs from the extension.

Does the Notification Service Extension work on the simulator?

It may be possible to test some related behavior, but the simulator is not a dependable way to validate the full remote push flow. For real debugging, use a physical iPhone or iPad.

What is required in the APNs payload for a Notification Service Extension to run?

The payload should include an aps dictionary with mutable-content: 1. Without that flag, iOS will usually display the notification without launching the service extension.

How do I see logs from a Notification Service Extension?

Use Xcode’s debug console when attached to the extension, or open the macOS Console app and view logs from the connected device. Add clear logging inside the extension code so you can trace each step.

Why does my notification attachment fail to download in the extension?

Common causes include an unreachable URL, an unsupported file, a slow network request, or the extension timing out before the download finishes. Confirm the file is accessible and keep the download path as short as possible.

Can App Groups affect notification service extension debugging?

Yes. If the extension and the app both need shared data, an App Group mismatch can break file access or shared state access and make the extension appear to fail for unrelated reasons.

Conclusion

The safest way to debug a Notification Service Extension is to work from the outside in: confirm the APNs payload, verify the extension target and entitlements, test on a physical device, then attach the debugger and inspect the logs. Once you know whether the issue is launch, mutation, attachment handling, or timeout behavior, the fix usually becomes much easier to isolate.
